¶ MobileHub Assembly Guide
¶ MobileHub mount
Properly clean the surface on which you wish to position the product.
| Description | Illustration | ||
|---|---|---|---|

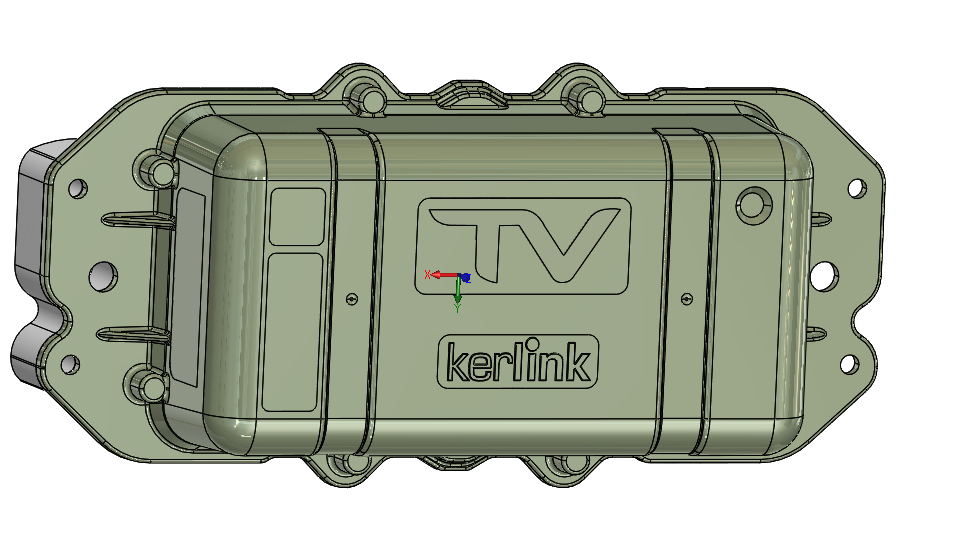

| Option 1: Horizontal with the text oriented for reading. |  |
||
 |

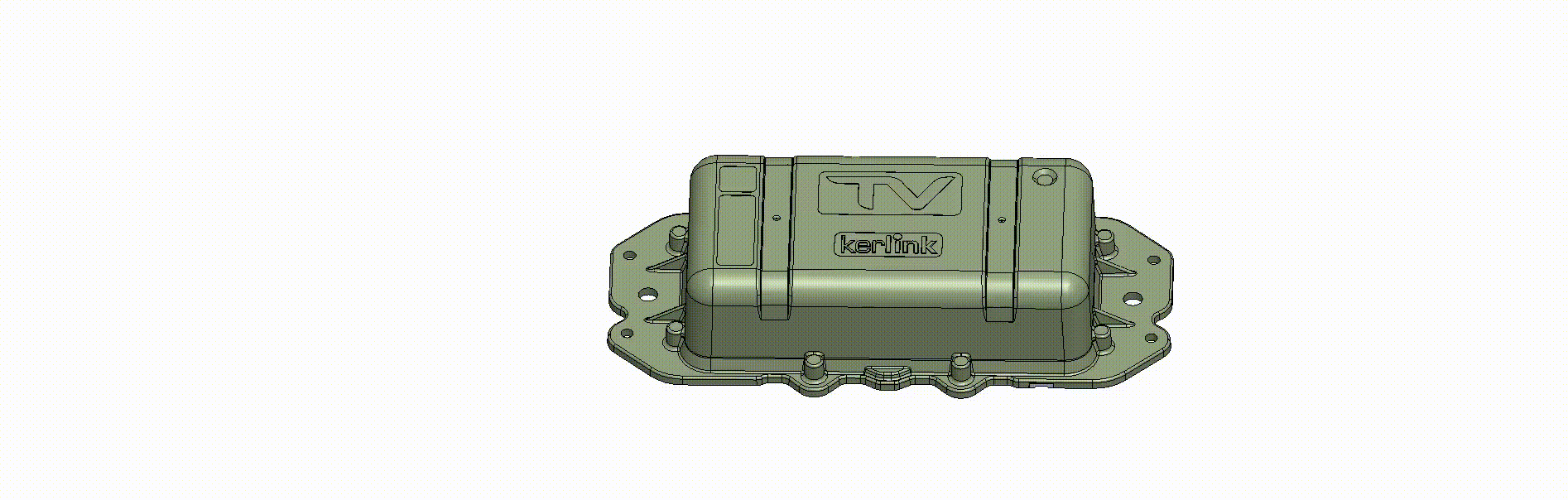

Option 2: Vertical. The LED must be in the upper part. |
¶ Magnet mount
The magnets used to mount the mobileHub are very strong.
|Please make sure you follow our instructions carefully, there is a risk of finger crushing.
Always use the spacers between the surface and the Mobile Hub to optimize antenna performance.
| Steps | Illustration |
|---|---|
| 0. Before taking the magnets out of the box, please note that you must keep them away from each other. Take them one by one and keep them apart. | |

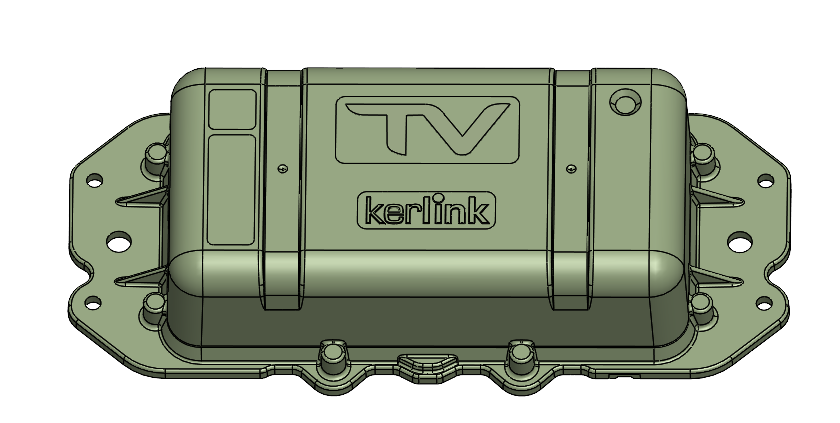

| 1. Lay down your MobileHub on a non-metallic surface |  |

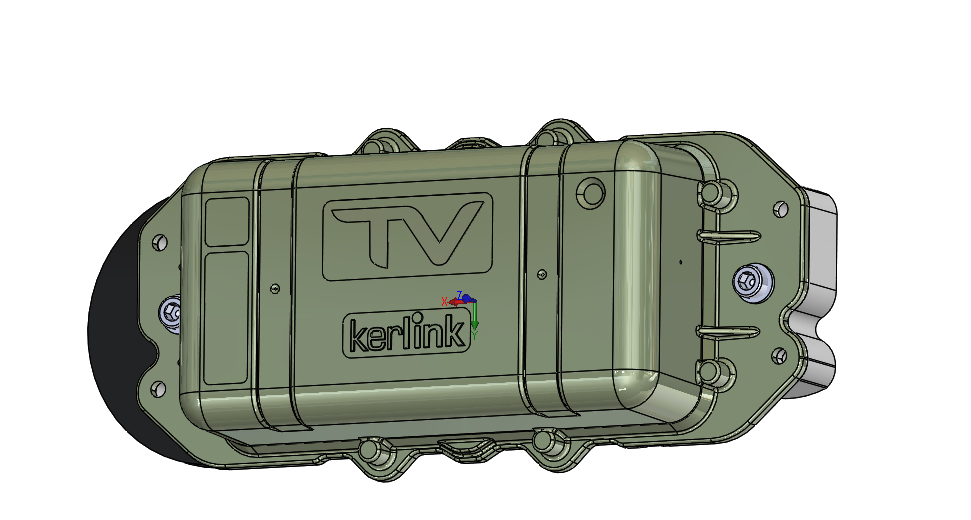

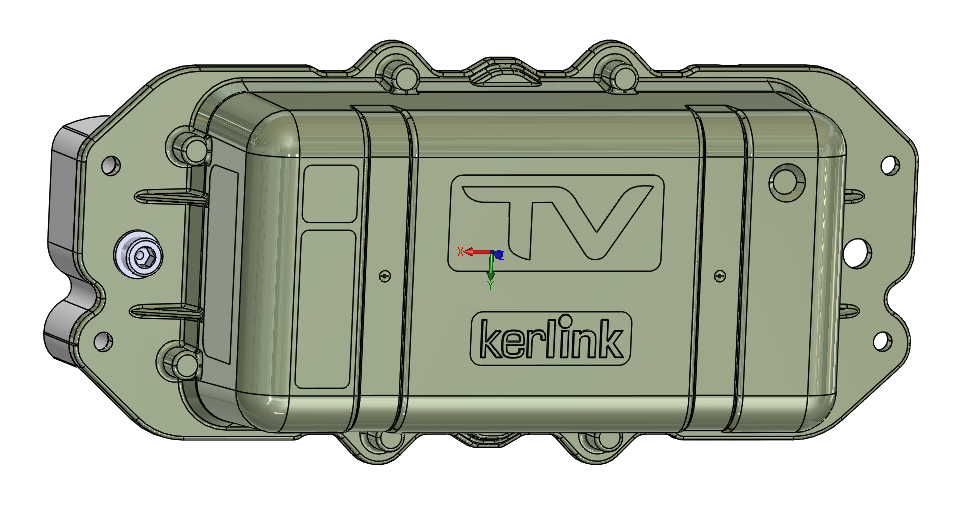

| 2. Put the spacer by aligning the holes well |  |
| 3. Put the screw and washer in the central hole |  |

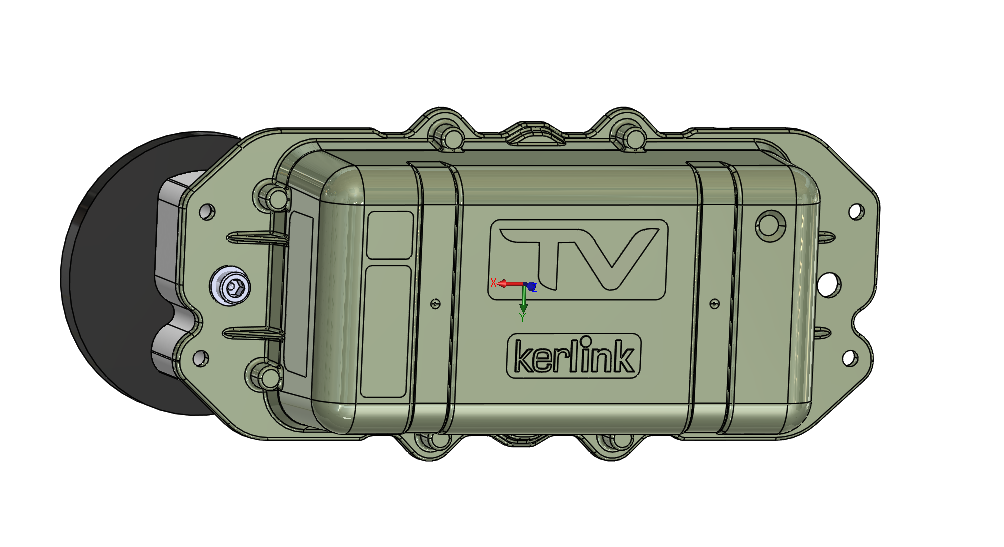

| 4. Present the magnet on the non-magnetizing side. Start screwing the magnet onto the screw. To screw, use a 4mm Allen wrench. Maintain the assembly so that it does not twist. Torque max 12N.m |  |

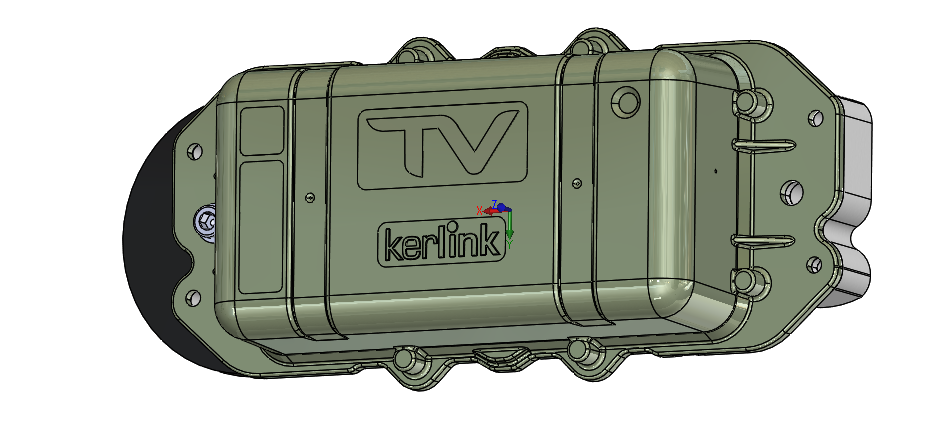

| 5. Put the second spacer by aligning the holes well |  |
| 6. Put the second screw and second washer in the central hole |  |
| 7. Present the second magnet on the non-magnetizing side. Start screwing the magnet onto the screw. To screw, use a 4mm Allen wrench. Maintain the assembly so that it does not twist. Torque max 12N.m |  |

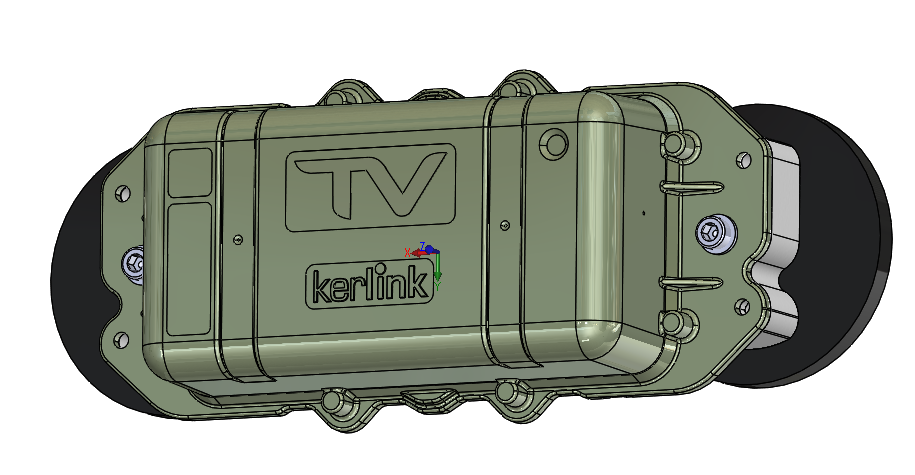

| 8. Your MobileHub is ready! Beware ot the strength of the magnets. |
¶ Your mobileHub is installed ?
It is now time to activate it !
